Catalog Symbol: ANN
Very Fast-Acting
For applications up to 800 amps

Often used to protect charging systems in battery-operated forklifts, golf carts and similar applications. These rugged, reliable fuses offer high amp ratings in a compact size just 7/8" x 33/16". Durable glass laminated melamine body and riveted construction offer superior service life in heavy-duty applications. Clear window provides open-fuse indication.

Ampere Rating: 10 to 800A
Voltage Rating: 125Vac (or less) 80Vdc (or less)
Interrupting Rating: 2,500A ac, 2,700A dc
Agency Information: UL Recognized, 35-400A, 500A dc only, Guide JFHR2, File E56412

General Information:
• Very fast-acting (high speed of responses to short-circuit currents).
• An open link element is visible through a mica window.
• Stud mounts in Buss fuseblock 4164.
• CSA component acceptance, 35-400A, 500A dc only, Class 1422-30, file 53787.

Features and Benefits
• Fast-acting circuit protection.
• Small footprint saves space.
• Window shows limiter status.

Typical Applications
• Fork lifts, Marine, Aviation

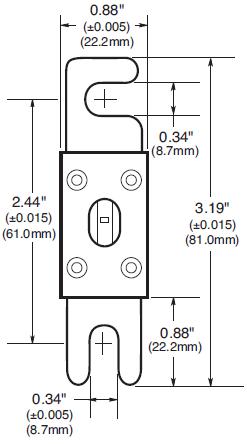

Dimensions


Electrical Ratings (Catalog Symbol and Amperes)

125Vac, IR 2500A @ 125V
ANN-10	ANN-90	ANN-225	ANN-400
ANN-35	ANN-100	ANN-250	ANN-500
ANN-40	ANN-125	ANN-275	ANN-600
ANN-50	ANN-150	ANN-300	ANN-700
ANN-60	ANN-175	ANN-325	ANN-800
ANN-80	ANN-200	ANN-350

Time-Current Characteristic Curves–Average Melt


Fuse Block:
Catalog Number: 4164, 4164-FR

Description: Limiter fuse blocks for ANL & ANN.

• 4164 furnished with nylon inserted locknuts
• 4164-FR furnished with standard hex nuts

Dimensions Length: 3.38" Width: 0.95" Height: 1.62" Studs center to center: 2.43"
Poles: 1 - stud terminal

Volts: 125Vac, 80Vdc
Amps: 10-800A
