170M Square Body DIN 43653 1250V / 1300V(IEC/UL):50-1400A


Description:
Square body DIN 43 653 stud-mount high speed fuses.

Ratings:
Volts: 1250Vac (IEC); 1300Vac (UL)
Amps: 50-1400A
IR: 100kA RMS Sym.

Agency Information:
CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status.

Electrical Characteristics
Total Clearing I2t

The total clearing I2t at rated voltage and at power factor of 15% are given in the electrical characteristics. For other voltages, the clearing I2t is found by multiplying by correction factor, K, given as a function of applied working voltage, Eg, (rms).

Arc Voltage
This curve gives the peak arc voltage, UL, which may appear across the fuse during its operation as a function of the applied working voltage, Eg, (rms) at a power factor of 15%.

Power Losses
Watts loss at rated current is given in the electrical characteristics. The curve allows the calculation of the power losses at load currents lower than the rated current. The correction factor, Kp, is given as a function of the RMS load current, Ib, in % of the rated current.

Features and Benefits
• Excellent DC performance
• Low arc voltage and low energy let-through (I2t)
• Low watts loss
• Superior cycling capability

Typical Applications
• DC common bus
• DC drives
• Power converters/rectifiers
• Reduced voltage starters

Dimensions (mm)
Type -/110, -TN/110


Dimensions (mm)
Type -KN/110


Catalog Numbers
-/110
Visual
Indicator
-TN/110
Type T Indicator for Micro
-KN/110
Type K Indicator for Micro
Size Electrical Characteristics
Rated
Current
RMS-Amps
I2t (A2  Sec) Watts
Loss
Pre-arc Clearing
at 1000V
Clearing
at 1250V
170M3138
170M3139
170M3140
170M3141
170M3142
170M3143
170M3144
170M3145
170M3146
170M3147
170M3148
170M3188
170M3189
170M3190
170M3191
170M3192
170M3193
170M3194
170M3195
170M3196
170M3197
170M3198
170M3238
170M3239
170M3240
170M3241
170M3242
170M3243
170M3244
170M3245
170M3246
170M3247
170M3248
1* 50A
63A
80A
100A
125A
160A
200A
250A
315A
350A
400A
135
215
420
750
1450
2600
5150
9200
18500
27000
53000
815
1300
2500
4450
9000
16000
31000
54500
115000
165000
265000
1100
1750
3350
5950
11500
21000
41000
73000
150000
220000
335000
15
20
25
30
35
40
45
55
60
65
70
170M4138
170M4139
170M4140
170M4141
170M4142
170M4143
170M4144
170M4145
170M4146
170M4147
170M4188
170M4189
170M4190
170M4191
170M4192
170M4193
170M4194
170M4195
170M4196
170M4197
170M4238
170M4239
170M4240
170M4241
170M4242
170M4243
170M4244
170M4245
170M4246
170M4247
1 160A
200A
250A
315A
350A
400A
450A
500A
550A
630A†
1900
3800
7750
15000
20000
29500
42000
69500
95000
130000
11500
22500
46000
90000
125000
175000
250000
340000
465000
660000
15500
30000
61500
120000
165000
235000
335000
435000
590000
45
50
60
65
70
75
80
85
95
100
170M5138
170M5139
170M5140
170M5141
170M5142
170M5143
170M5144
170M5145
170M5146
170M5147
170M5148
170M5149
170M5150
170M5188
170M5189
170M5190
170M5191
170M5192
170M5193
170M5194
170M5195
170M5196
170M5197
170M5198
170M5199
170M5200
170M5238
170M5239
170M5240
170M5241
170M5242
170M5243
170M5244
170M5245
170M5246
170M5247
170M5248
170M5249
170M5250
2 250A
280A
315A
350A
400A
450A
500A
550A
630A
700A
800A
900A†
1000A†
6500
9350
13000
16500
23000
34000
48000
62000
115000
160000
245000
360000
480000
38500
55500
77500
97500
140000
205000
285000
370000
575000
795000
1200000
1750000
2350000
51500
74500
105000
135000
180000
270000
380000
495000
730000
1050000
1550000
65
70
75
80
85
90
95
100
110
115
120
125
135
170M6138
170M6139
170M6140
170M6141
170M6142
170M6143
170M6144
170M6145
170M6146
170M6147
170M6148
170M6149
170M6150
170M6151
170M6188
170M6189
170M6190
170M6191
170M6192
170M6193
170M6194
170M6195
170M6196
170M6197
170M6198
170M6199
170M6200
170M6201
170M6238
170M6239
170M6240
170M6241
170M6242
170M6243
170M6244
170M6245
170M6246
170M6247
170M6248
170M6249
170M6250
170M6251
3 315A
350A
400A
450A
500A
550A
630A
700A
800A‡
900A‡
1000A‡
1100A‡
1250A†
1400A†
9500
13500
19500
31000
39000
55000
83500
115000
205000
305000
450000
575000
810000
1250000
58000
81500
120000
185000
235000
325000
495000
705000
995000
1500000
2150000
2800000
3950000
6000000
77500
110000
160000
245000
310000
435000
665000
940000
1300000
1900000
2750000
3600000
85
90
95
100
105
110
115
120
125
130
135
140
145
150
†Rated voltage (IEC) 1100V.
‡Rated voltage (IEC) 1250V.
• Watts loss provided at rated current.
• Microswitch indicator ordered separately.

Size 1* — 50-400A:1250V
Time-Current Curve

Peak Let-Through Curve


Size 1 — 160-630A: 1250V
Time-Current Curve

Peak Let-Through Curve


Size 2 — 250-1000A: 1250V
Time-Current Curve

Peak Let-Through Curve


Size 3 — 315-1400A: 1250V
Time-Current Curve

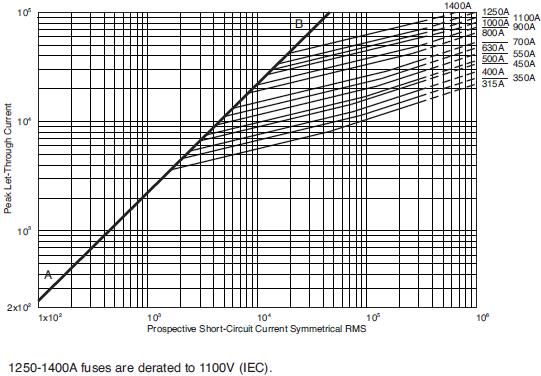

Peak Let-Through Curve

----------------------------------
