cooper bussmann

T300 Class T fuse blocks - 300V


Description:
T300 (300V) fuse blocks for use with Class T fuses (Cooper Bussmann JJN).

Construction: Glass polyester, phenolic on 600A, UL.

Poles: 1 to 4

Ratings:
Volts: 300V
Amps: 1⁄2 - 600A
Withstand: 200,000A RMS Sym.

Agency Information:
CE, UL Listed UL512, Guide IZLT, File E14853, CSA Certified, Class 6225-01, File 47235.

Flammability Rating: UL 94V0.

Features and Benefits
• Provide 1-, 2- and 3-pole housing for 300Vac Class T fuses.
• Short Circuit Current Rating of 200,000A RMS Sym.
• Class T fuse blocks have a small foot print, providing substantial space savings in equipment

Typical Applications
• 300V or less Control Systems
• 300V or less Individual Control Circuits

Catalog Numbers
Screw Box Lug Amps Poles Fig.No. Wire Range
T30030-2SR T30030-2CR 1/2-30 2 1 SR #10-18 CU
T30030-3SR T30030-3CR 3 CR #6-14 CU/AL
T30030-4SR T30030-4CR 4
T30060-2SR T30060-2CR 31-60 2 CR #2-14 CU/AL
T30060-3SR T30060-3CR 3 SR #10-18 CU Only
T30060-4SR T30060-4CR 4
T30100-1CR 61-100 1 2 1/0-8 CU/AL
T30100-2CR 2
T30100-3CR 3
T30200-1C 101-200101-200 1 3 250kcmil-6 CU/AL
T30200-3C 3 4
T30400-1C 201-400 1 5 600kcmil-2/0 CU/AL

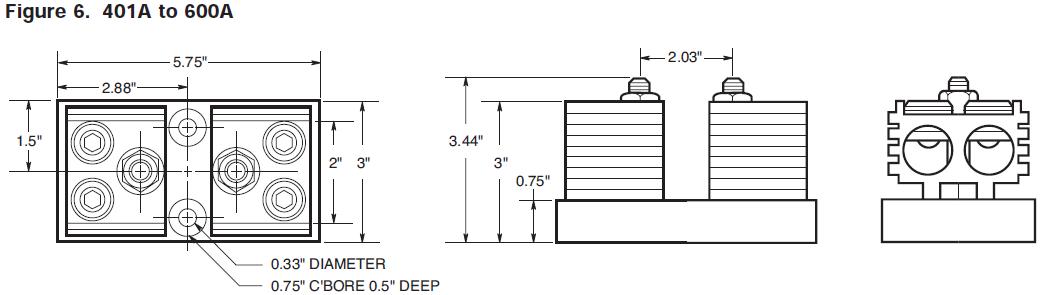

T30600-1C 401-600 1 6 (2) 600kcmil-4/0 CU/AL

Dimensions
Catalog Numbers Dimensions (in)
A B C
T30030-2 2.41 1.03
T30060-2
T30030-3 3.44 1.03 2.06
T30060-3
T30030-4 4.47 2.06 3.09
T30060-4












----------------------------------
